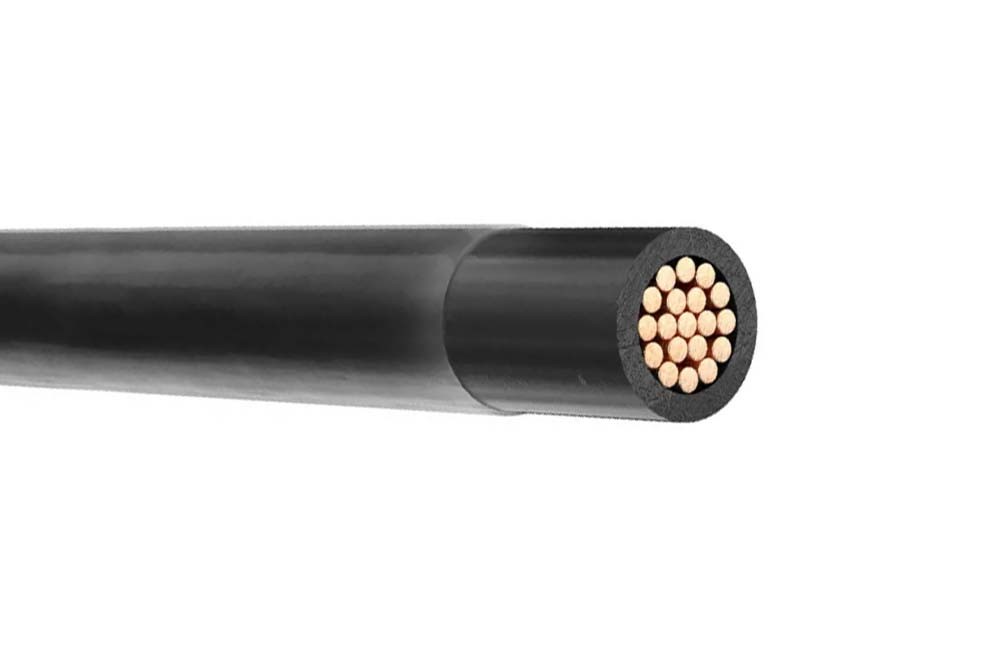

| THHN / THWN-2 Copper Electric Wire PNS35-1 | ||
| Voltage: | 600V | |

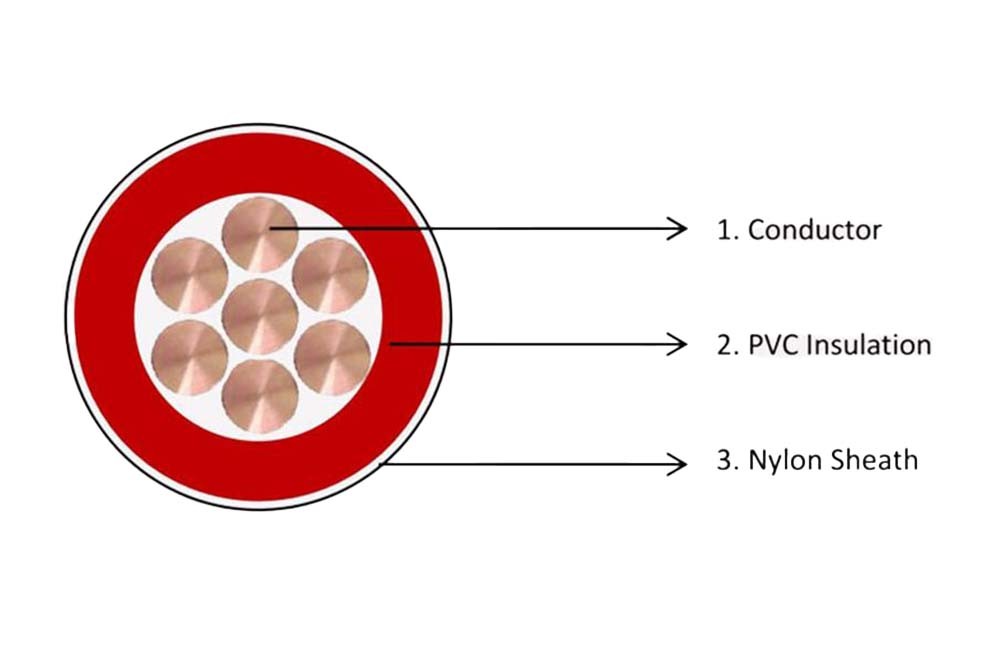

| Structure: | Conductor | Annealed copper wire: Conforming to requirements of PNS 260 for solid conductor or PNS 1207 for stranded conductors. 14～500mm2 compact stranded. |
| Insulation | PVC conforming to the requirements of PNS 661 | |
| Sheath | Tough polyamide (Nylon) | |

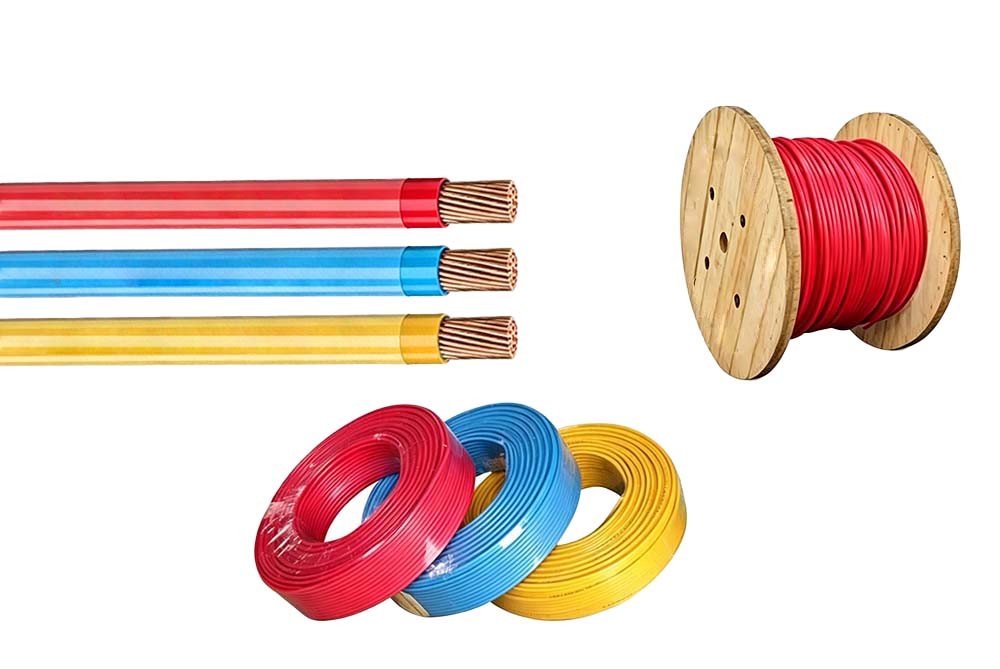

| Insulation Colour | Available colors are red, white, blue, green, black, etc | |
General purpose building wire for services feeders and branch circuits. Also used for wiring of machine tools (stranded), appliances, and control circuits.
Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.
Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.
600V
90℃ dry / 75℃ wet
PNS35-1
Annealed copper wire:
Conforming to requirements of PNS 260 for solid conductor or PNS 1207 for stranded conductors.

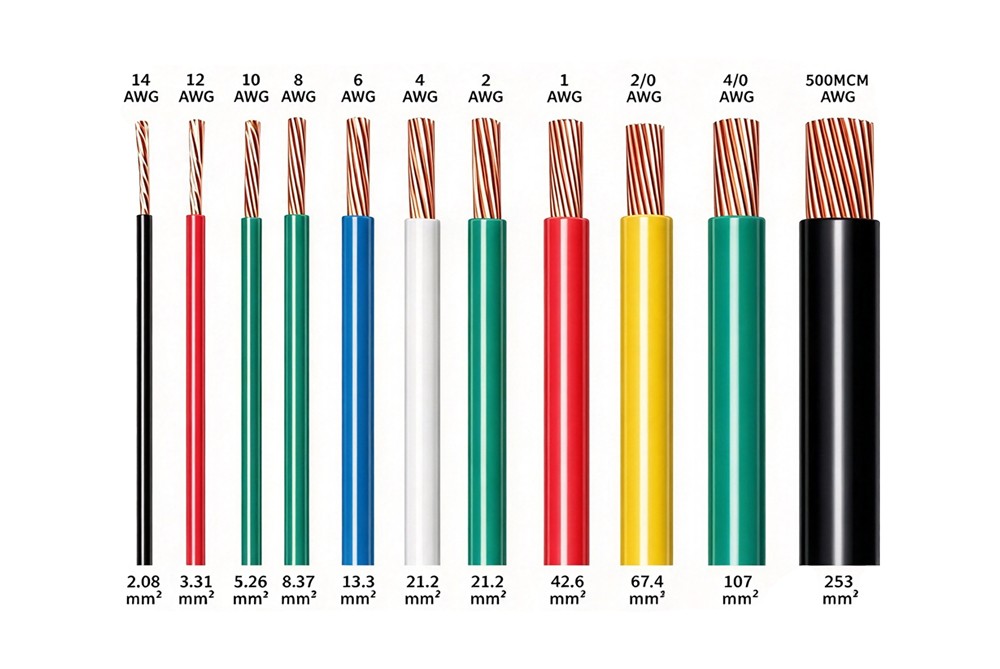

14～500mm2 compact stranded.
PVC conforming to the requirements of PNS 661
Tough polyamide (Nylon)
Available colors are red, white, blue, green, black, etc
| Conductor | Minimum insulation thickness(mm) | Minimum nylon thickness | Approx. overall diameter | |||
| Nominal sectional area | Composition | Approximate Outside diameter | Average | At any point | mm | mm |
| mm2 | Number of wires | mm | ||||
| 2 | 1 | 1.6 | 0.4 | 0.34 | 0.1 | 2.6 |
| 7 | 1.8 | 2.8 | ||||
| 3.5 | 1 | 2 | 0.4 | 0.34 | 0.1 | 3 |
| 7 | 2.4 | 3.4 | ||||
| 5.5 | 1 | 2.6 | 0.5 | 0.34 | 0.1 | 3.8 |
| 7 | 3 | 4.2 | ||||
| 8 | 1 | 3.2 | 0.8 | 0.68 | 0.13 | 5.1 |
| 7 | 3.6 | 5.5 | ||||
| 14 | 7 | 4.4 | 0.8 | 0.68 | 0.13 | 6.5 |
| 22 | 7 | 5.5 | 1 | 0.85 | 0.15 | 8.1 |
| 30 | 7 | 6.5 | 1 | 0.85 | 0.15 | 9.1 |
| 38 | 19 | 7.3 | 1.3 | 1.11 | 0.18 | 10.6 |
| 50 | 19 | 8 | 1.3 | 1.11 | 0.18 | 11.3 |
| 60 | 19 | 9.2 | 1.3 | 1.11 | 0.18 | 12.5 |
| 80 | 19 | 10.7 | 1.3 | 1.11 | 0.18 | 14 |
| 100 | 19 | 11.8 | 1.3 | 1.11 | 0.18 | 15.1 |
| 125 | 37 | 13.1 | 1.6 | 1.36 | 0.18 | 17 |
| 150 | 37 | 14.5 | 1.6 | 1.36 | 0.2 | 18.4 |
| 175 | 37 | 15.6 | 1.6 | 1.36 | 0.2 | 19.5 |
| 200 | 37 | 16.8 | 1.6 | 1.36 | 0.2 | 20.7 |
| 250 | 37 | 18.7 | 1.6 | 1.36 | 0.2 | 22.6 |
| 300 | 61 | 20.4 | 1.8 | 1.53 | 0.23 | 24.8 |
| 325 | 61 | 21.3 | 1.8 | 1.53 | 0.23 | 25.7 |
| 375 | 61 | 22.4 | 1.8 | 1.53 | 0.23 | 26.8 |
| 400 | 61 | 23.6 | 1.8 | 1.53 | 0.23 | 28 |
| 500 | 61 | 26.4 | 1.8 | 1.53 | 0.23 | 30.8 |
SOUTH CABLE is a company specializing in the research, development, manufacturing,and sales of high-end wire and cable products.
Always a pre-production sample before mass production; Always final Inspection before shipment.
Wire, Cable
We have CSA and CUL certifications, We have Fifteen years of experience in design and development.
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,EUR;
Accepted Payment Type:T/T,L/C,Money Gram,Western Union;Language Spoken:English,Chinese,French
Most quotes are returned within 24 hours
TEST
Tests are divided into routine tests, sampling tests and type test items.
routine tests: Tests carried out by the manufacturer on all manufactured lengths of finished cables toverify that all cables comply with specified requirements.Routine test items :Conductor resistance measurement, voltage test.
Sampling tests: Tests carried out by the manufacturer on specimens of finished cables or on certaincomponents taken from finished cables at specified frequencies to check whether the cables complywith specified requirements.
Sampling test items:Conductor inspection, dimensional inspection,thermal extension testing ofinsulation and elastomer sheaths.
Type test：Tests carried out on normal commercial principles before supply of a type of cable covered by this standard to demonstrate that the cable has satisfactory performance under the conditions of intended use.
Type testing includes electrical type testing and non-electrical type testing items.
Electrical type test items:1) Insulation resistance measurement at ambient temperature.2) Measurement of insulation resistance at maximum conductor temperature during normal operation.3) 4h voltage test.
Non-electrical type test items include insulation non-electrical type test and sheath non-electrical type test.
Insulation non-electrical type test items: Dimensional measurements、mechanical properties(tensile strength and Elongation at break)、High temperature pressure test、Low temperature performance、Thermal shock test、Thermal extension test and water absorption test, etc.
Sheath non-electrical type test items：Dimensional measurements、mechanical properties(tensile strength and Elongation at break)、High temperature pressure test、Low temperature performance、Weight loss test and thermal shock test, etc.
