| THHN / THWN-2 Copper Building Wire | ||
| Voltage: | 600V | |

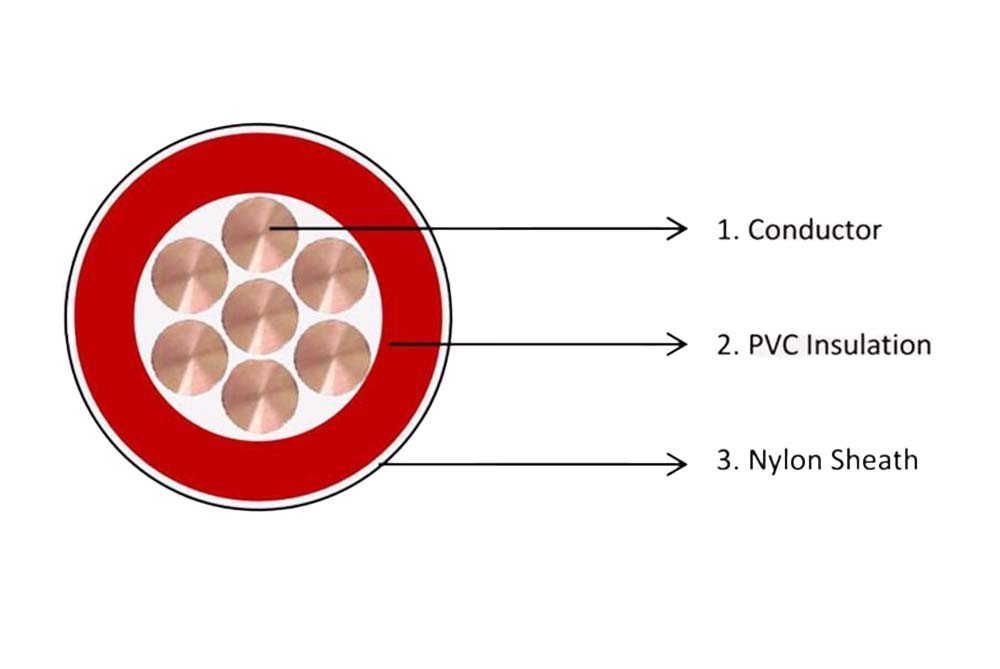

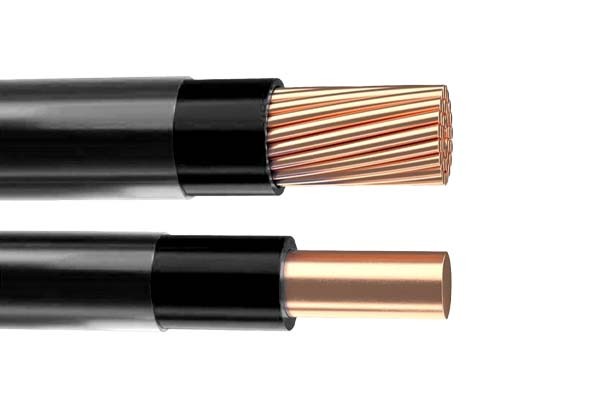

| Structure: | Conductor | Solid, Soft annealed bare copper |
| Insulation | Heat and moisture resistant PVC insulation in various colors | |
| Sheath | External cover in polyamide (nylon) | |

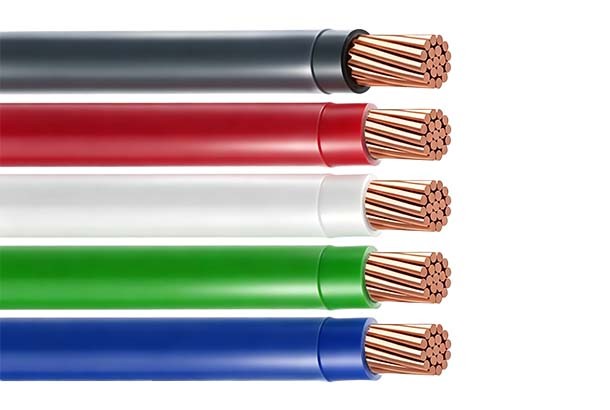

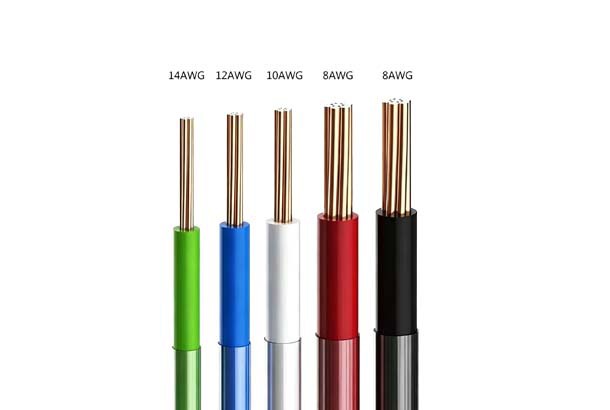

| Insulation Colour | Red/Black/White/Blue/Green/Pink etc | |
Low voltage electrical energy distribution; for use in electrical wiring of buildings, feeder circuits, branches and secondary industrial, commercial and residential indoor networks. Special for installations in abrasive sites or sites contaminated with oil, grease, gasoline, and other chemical substances. They are suitable for installation in ducts, pipes, boards, and cable trays according to RETIE article 20.3 literal J, from 12 AWG gauge and larger.
Thermoplastic PVC-insulated building wire, Nylon sheath, 90°C, 600 V, for dry and damp locations.
Thermoplastic PVC-insulated building wire, Heat resistant 75°C, for Wet and dry locations, flame retardant.
600V
90°C dry and wet places
ASTM B8； ASTM B 3； UL 83
Solid, Soft annealed bare copper
Heat and moisture resistant PVC insulation in various colors
External cover in polyamide (nylon)
Red/Black/White/Blue/Green/Pink etc
| Cond. Size | Strand Count | Diameter Over Conductor | Insul. Thickness | Jacket Thickness | Approx. OD | Approx. Weight | DC Resistance @ 20°C | Allowable Ampacity At 75°C | Allowable Ampacity At 90°C |
| AWG/ Kcmil | Minimum Number of Strands | mm | mm | mm | mm | KG/KM | Ω/KM | Amp | Amp |
| 14 | Solid | 1.63 | 0.38 | 0.1 | 2.9 | 24.7 | 8.45 | 15 | 15 |
| 12 | Solid | 2.05 | 0.38 | 0.1 | 3.3 | 36.5 | 5.31 | 20 | 20 |
| 10 | Solid | 2.59 | 0.51 | 0.1 | 4.1 | 58.1 | 3.34 | 30 | 30 |
| 8 | 7 | 3.4 | 0.76 | 0.13 | 5.5 | 98.3 | 2.14 | 50 | 55 |
| 6 | 7 | 4.29 | 0.76 | 0.13 | 6.4 | 147.2 | 1.35 | 65 | 75 |
| 4 | 7 | 5.41 | 1.02 | 0.15 | 8.1 | 234.5 | 0.848 | 85 | 95 |
| 3 | 7 | 6.02 | 1.02 | 0.15 | 8.7 | 288.2 | 0.673 | 100 | 115 |
| 2 | 7 | 6.81 | 1.02 | 0.15 | 9.5 | 356.1 | 0.534 | 115 | 130 |
| 1 | 18 | 7.59 | 1.27 | 0.18 | 10.8 | 456.1 | 0.423 | 130 | 145 |
| 1/0 | 18 | 8.53 | 1.27 | 0.18 | 11.8 | 564.3 | 0.335 | 150 | 170 |
| 2/0 | 18 | 9.55 | 1.27 | 0.18 | 12.8 | 698 | 0.266 | 175 | 195 |
| 3/0 | 18 | 10.74 | 1.27 | 0.18 | 14 | 866.4 | 0.211 | 200 | 225 |
| 4/0 | 18 | 12.07 | 1.27 | 0.18 | 15.3 | 1079.5 | 0.167 | 230 | 260 |
| 250 | 35 | 13.21 | 1.52 | 0.2 | 17 | 1284.1 | 0.142 | 255 | 290 |
| 300 | 35 | 14.48 | 1.52 | 0.2 | 18.3 | 1528.4 | 0.118 | 285 | 320 |
| 350 | 35 | 15.65 | 1.52 | 0.2 | 19.4 | 1770.8 | 0.101 | 310 | 350 |
| 400 | 35 | 16.74 | 1.52 | 0.2 | 20.5 | 2007.8 | 0.0885 | 335 | 380 |
| 500 | 35 | 18.69 | 1.52 | 0.2 | 22.5 | 2481.2 | 0.0709 | 380 | 430 |
| 600 | 58 | 20.65 | 1.78 | 0.23 | 25 | 2995.8 | 0.059 | 420 | 475 |
| 750 | 58 | 22.28 | 1.78 | 0.23 | 26.7 | 3469.8 | 0.0472 | 475 | 535 |
| 1000 | 58 | 26.92 | 1.78 | 0.23 | 31.3 | 4896.4 | 0.0354 | 545 | 615 |
